Piaggio Vespa

History

Post World War II Italy, in light of its agreement to cessation of war activities with the Allies, had its aircraft industry severely restricted in both capability and capacity.

Piaggio emerged from the conflict with its Pontedera fighter plane plant completely demolished by bombing. Italy's crippled economy and the disastrous state of the roads did not assist in the re-development of the automobile markets. Enrico Piaggio, the son of Piaggio's founder Rinaldo Piaggio, decided to leave the aeronautical field in order to address Italy's urgent need for a modern and affordable mode of transportation for the masses.

Pre-war Piaggio employee Aeronautical engineer General Corradino D'Ascanio, responsible for the design and construction of the first modern helicopter by Agusta, was given the job of designing a simple, robust and affordable vehicle for Ferdinando Innocenti, whose pre-war metal tubing business Innocenti had suffered the same fate as Piaggio post-war. Innocenti defined a post-war vehicle to D'Ascanio that had to be easy to drive for both men and women, be able to carry a passenger, and not get its driver's clothes dirty.

However, D'Ascanio had a falling-out with Innocenti, who rather than a molded and beaten spar-frame wanted to produce his Innocenti frame from rolled tubing, thereby allowing him to revive both parts of his pre-War company. D'Ascanio disassociated himself with Innocenti, and took his design to Enrico Piaggio to produce the spar-framed Vespa from 1946. Innocenti, after overcoming design difficulties and later production difficulties through his choice of a tubular frame, went on to produce the more costly Lambretta line of motorscooters.

Product

On 23 April 1946, at 12 o'clock in the central office for inventions, models and makes of the Ministry of Industry and Commerce in Florence, Piaggio e C. S.p.A. took out a patent for a "motorcycle of a rational complexity of organs and elements combined with a frame with mudguards and a casing covering the whole mechanical part".

The basic patented design allowed a series of features to be deployed on the spar-frame which would later allow quick development of new models. The original Vespa featured a rear pillion seat for a passenger, or optionally a storage compartment. The original front protection "shield" was a flat piece of aero metal; later this developed in to a twin skin to allow additional storage behind the front shield, similar to the glove compartment in a car. The fuel cap was located underneath the (hinged) seat, which saved the cost of an additional lock on the fuel cap or need for additional metal work on the smooth skin.

The scooter had rigid rear suspension and small 8-inch (200 mm) wheels that allowed a compact design and plenty of room for the rider's legs. The Vespa's enclosed, horizontally-mounted two-stroke 98 cc engine acted directly on the rear drive wheel through a three-speed transmission. The twistgrip-controlled gear change involved a system of rods. The early engine had no cooling, but fan blades were soon attached to the flywheel (otherwise known as the magneto, which houses the points and generates electricity for the bike and for the engine's spark) to push air over the cylinder's cooling fins. The modern Vespa engine is still cooled this way. The mixture of two-stroke oil in the fuel produced high amounts of smoke, and the engine made a high buzzing sound like a wasp.

Launch

Piaggio filed a patent for the Vespa scooter design in April 1946. The application documents referred to a "model of a practical nature" for a "motorcycle with rationally placed parts and elements with a frame combining with mudguards and engine-cowling covering all working parts", of which "the whole constitutes a rational, comfortable motorcycle offering protection from mud and dust without jeopardizing requirements of appearance and elegance". The patent was approved the following December.

The first 13 examples appeared in spring 1946, and reveal their aeronautical background. In the first examples, one can recognize the typical aircraft technology. Attention to aerodynamics is evident in all the design, in particular on the tail. It was also one of the first vehicles to use monocoque construction (where the body is an integral part of the chassis).

The company was aiming to manufacture the new Vespa in large numbers, and their longstanding industrial experience led to an efficient Ford-style volume production line. The scooter was presented to the press at Rome Golf Club, where journalists were apparently mystified by the strange, pastel coloured, toy-like object on display. But the road tests were encouraging, and even with no rear suspension the machine was more manoeuvrable and comfortable to ride than a traditional motorcycle.

Following its public debut at the 1946 Milan Fair, the first fifty sold slowly—then with the introduction of payment by installments, sales took off.

Sales and development

Piaggio sold some 2,500 Vespas in 1947, over 10,000 in 1948, 20,000 in 1949, and over 60,000 in 1950.

The biggest sales promo ever was Hollywood. In 1952, Audrey Hepburn side-saddled Gregory Peck's Vespa in the feature film Roman Holiday for a ride through Rome, resulting in over 100,000 sales. In 1956, John Wayne dismounted his horse in favor of the two-wheeler to originally get between takes on sets. By the end of the fifties, Lucia Bosé and her husband, the matador Luis Miguel Dominguín, as well as Marlon Brando, Dean Martin, and the entertainer Abbe Lane had become Vespa owners. William Wyler filmed Ben Hur in Rome in 1959, allowing Charlton Heston to abandon horse and chariot between takes to take a spin on the Vespa.

Vespa clubs popped up throughout Europe, and by 1952, worldwide Vespa Club membership had surpassed 50,000. By the mid-1950s, Vespas were being manufactured under licence in Germany, the United Kingdom, France, Belgium and Spain; in the 1960s, production was started in India, Brazil and Indonesia. By 1956, one million had been sold, then two million by 1960. By the 1960s, the Vespa—originally conceived as a utility vehicle—had come to symbolize freedom and imagination, and resulted in further sales boosts: four million by 1970, and ten million by the late 1980s. Between 1957 and 1961 a reverse-engineered and partially redesigned version of the Vespa was made in USSR under the name Vjatka-VP150.

Improvements were made to the original design and new models were introduced. The 1948 Vespa 125 had rear suspension and a bigger engine. The headlamp was moved up to the handlebars in 1953, and had more engine power and a restyled rear fairing. A cheaper spartan version was also available. One of the best-loved models was the Vespa 150 GS introduced in 1955 with a 150 cc engine, a long saddle, and the faired handlebar-headlamp unit. Then came the 50 cc of 1963, and in 1968 Vespa 125 Primavera became one of the most durable of all.

Vespas came in two sizes, referred to as "largeframe" and "smallframe". The smallframe scooters came in 50cc, 90cc, 100 cc, and 125 cc versions, all using an engine derived from the 50 cc model of 1963, and the largeframe scooters in 125cc,150cc,160cc,180cc and 200 cc displacements using engines derived from the redesigned 125 cc engine from the late 50's.

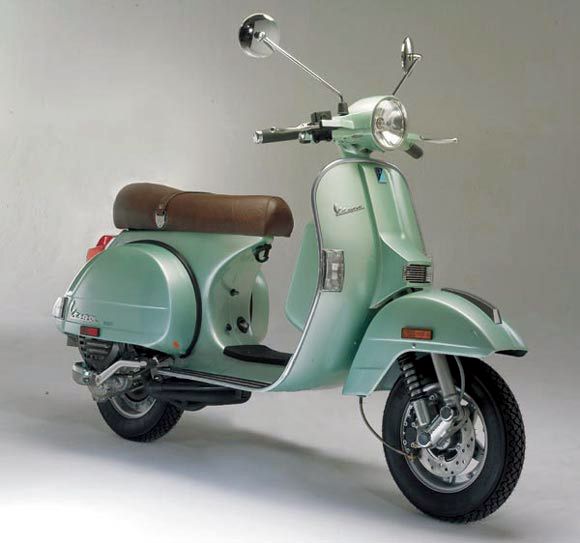

The largeframe Vespa evolved into the PX range (produced in 125 and 150 cc versions until July 2007) in the late '70s. The smallframe evolved into the PK range in the early '80s, although some vintage-styled smallframes were produced for the Japanese market as late as the mid 1990s.

1990s and beyond

By the early 1990s, Vespa was in crisis. Its models were selling slowly; two-strokes were being withdrawn around the world due to environmental concerns; new Asian manufacturers were stealing market share with cheaper/lighter bikes; and cars were very cheap. As a result, sales had fallen and production in Europe had been pulled back to Italy. Vespa needed a miracle—and a new model, beyond the PX.

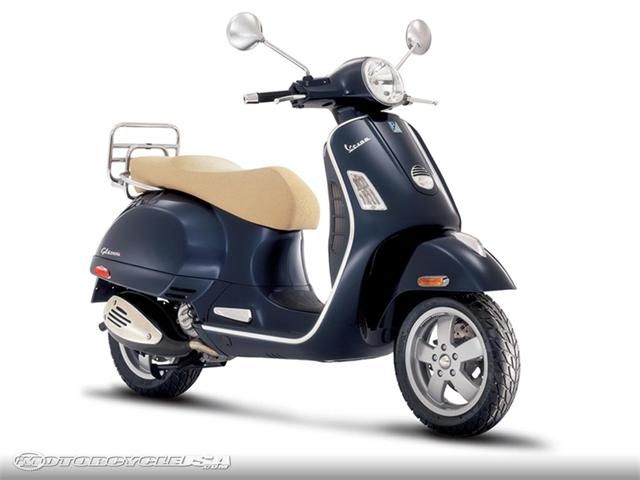

The ET model range stuck true to the wasp/aero design principles. It was lighter, more aerodynamic, had an automatic gearbox and could take a series of engines from a 50 cc in either two-stroke or four-stroke, up to a 150 cc four stroke. Plus, it was launched when traffic congestion in major European cities was on the increase, so the smaller wheel size didn't matter. It was a complete success, and allowed Vespa to re-enter the North American market in 2001 with a new, more modern style.

When Vespa celebrated its 50th anniversary in 1996, more than 15 million of the scooters had been sold worldwide, making it the most successful scooter of all time. Other companies vied with Piaggio for market share, but none came close to emulating the success—or romance—of Vespa. The nostalgic image of Vespa, however, could not hide the fact that Vespa was making a loss.

Design icon

With its elegant lines and classic aesthetics, the Vespa is recognized as the epitome of Italian design. In recent years, many urban commuters have purchased new or restored Vespas. A shortage of available parking for automobiles in large urban areas and the Vespa's low running costs are two reasons for the increase in Vespa (and other scooter) popularity. The cultural use of the scooter as a recreational vehicle with a sub-cultural following in the USA/Canada and parts of Europe & Japan has also contributed to the rise in Vespa ownership. In contrast, the Vespa is considered a utilitarian vehicle for hauling products and sometimes up to 5 family members in much of Asia and Mexico

Vespa enthusiasts can visit the comprehensive Piaggio Museum & Gift Shop adjacent to the plant in central Pontedera, near Pisa, Tuscany. The permanent exhibition includes those items which toured prestigious venues such as the Guggenheim in New York and the Centre Pompidou in Paris. Also on display is, perhaps, the most famous Vespa of them all—the one personally customised by Salvador Dalí in 1962. The helpful museum staff speak English.

India

Piaggio first licensed the production of Vespa scooters in India to Bajaj Auto in the 1960s. In 1971, Piaggio's license was not renewed as a part of Indira Gandhi's privatization programs. After the collaboration ended, Bajaj continued to produce scooters of its own design, namely the Chetak, using design and engineering cues it had gleaned from the earlier affiliation.

Another Vespa partner in India was that of LML Motors. Beginning as a joint-venture with Piaggio in 1983, LML, in addition to being a large parts supplier for Piaggio, produced the P-Series scooters for the Indian market. In 1999, after protracted dispute with Piaggio, LML bought back Piaggio's stake in the company and the partnership ceased. LML continues to produce (and also exports) the P-Series variant known as the Stella in the U.S. market and by other names in different markets.

Piaggio, in 2007, announced plans to reenter the Indian market. This time, however, Piaggio plans to do so with a wholly owned subsidiary.
